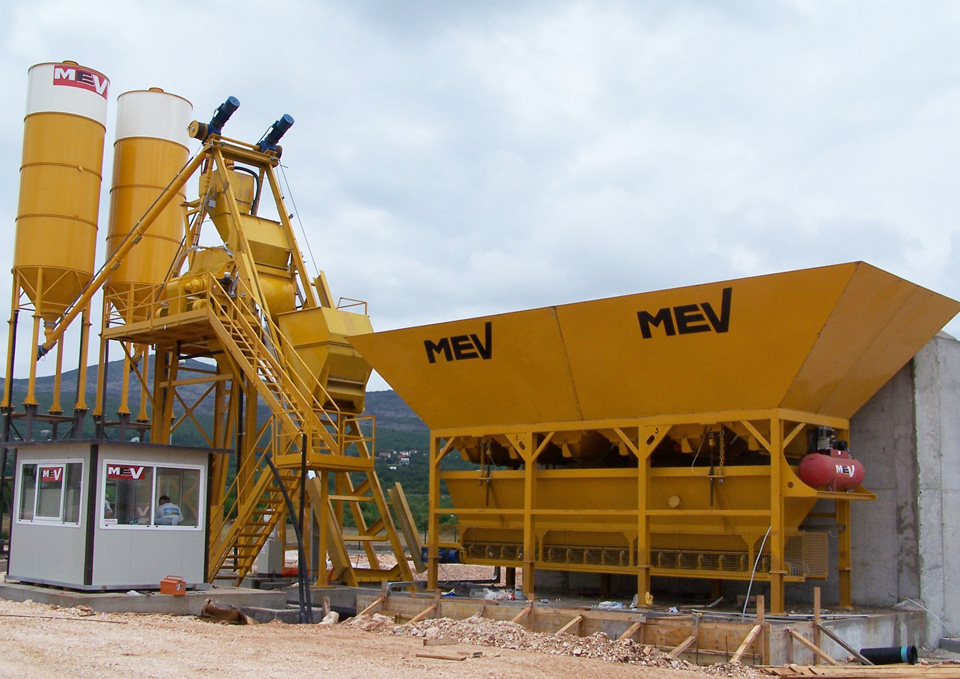

Compact wet concrete batching plant for the production of ready-mix concrete
Compact wet concrete batching plant for the production of ready-mix concrete; it is fitted with twin-shaft mixer and 4 aggregate storage bins. Production from 40 to 60 m³/h. This plant is also available in the “double” version: WET+DRY with diverter for cement and aggregates, in order to obtain, with a single plant, the dry dosage and the premixing.
The mixer can be loaded by means of a conveyor or through a skip.
Each MEV plant can be customized according to specific customer requirements.
|CASTORO WET S4 - W40||CASTORO WET S4 - W60|
|Production||40 m³/h||60 m³/h|
|Aggregate storage bins||4||4|
|Aggregates hopper capacity||70 m³||70 m³|
|Mixer type||Twin shaft||Twin shaft|
|Mixer capacity||1500 l||2250 l|
|Compacted concrete output per cycle||1 m³||1,5 m³|
|Aggregate weighing||10.000 Kg||10.000 Kg|
|Cement weighing||2.000 Kg||2.000 Kg|
|Water weighing||300 Kg||300 Kg|
|Additives weighing||2x25 Kg||2x25 Kg|
|Water pump||1.000 lt/min||1.000 lt/min|
|Screw conveyor diameter||273 mm||273 mm|
|Silos capacity||50÷100 tonn.||50÷100 tonn.|
|Automatic handling||Electromechanical or fully computerized||Electromechanical or fully computerized|
