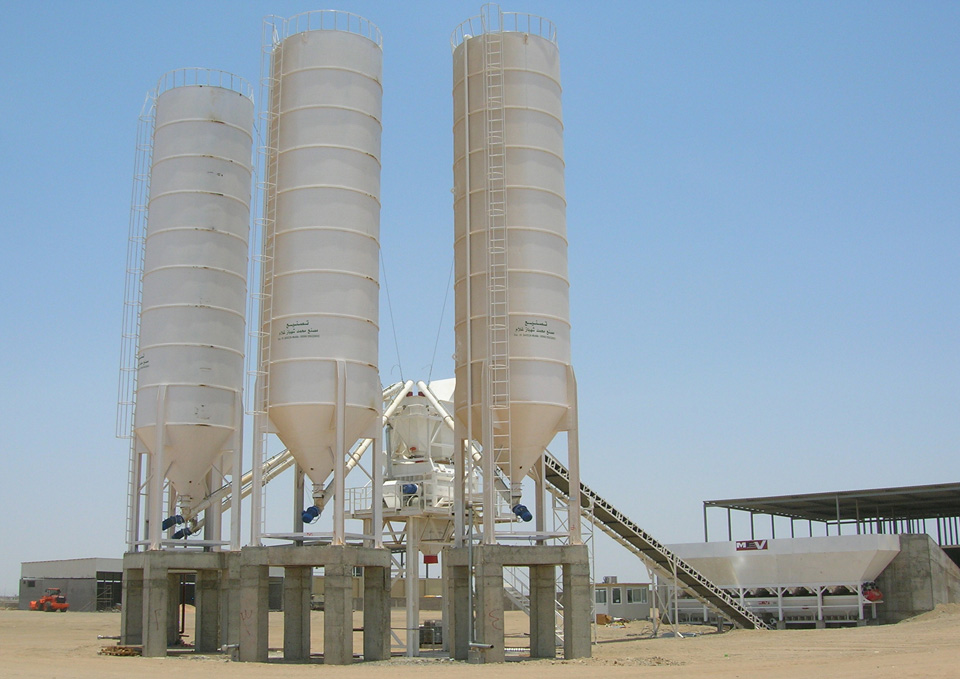

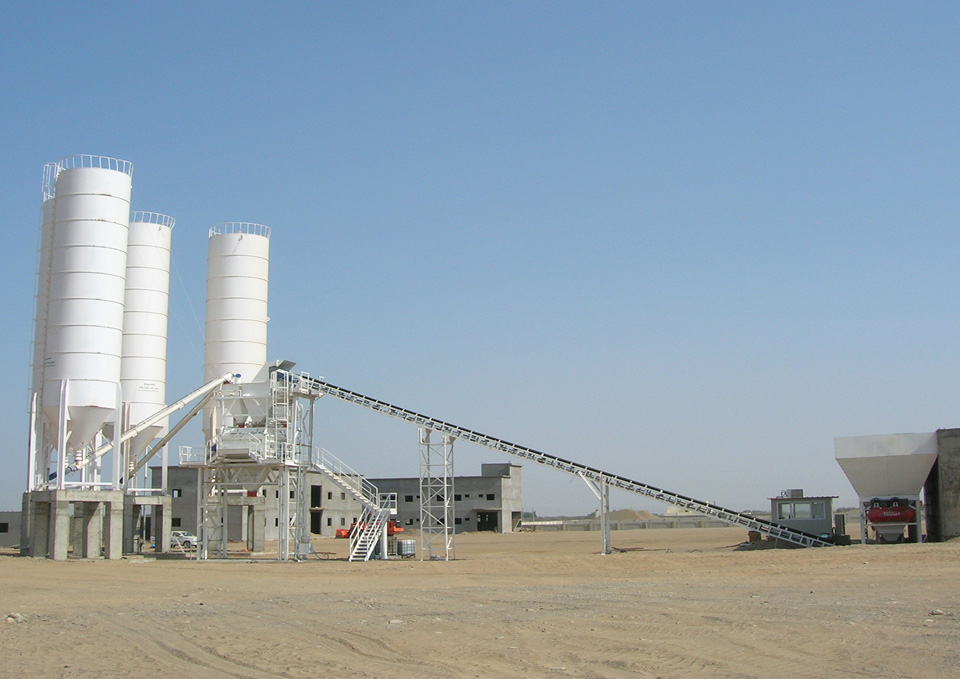

Compact wet concrete batching plant for the production of ready-mix concrete
Compact wet concrete batching plant for the production of ready-mix concrete. It is fitted with twin-shaft mixer and 5 aggregate storage bins. Production from 90 to 120 m³/h.
This plant is also available in the “double” version: WET+DRY with diverter for cement and aggregates, in order to obtain, with a single plant, the dry dosage and the premixing.
The mixer can be loaded by means of a conveyor or through a skip.
Each MEV plant can be customized according to specific customer requirements.
|GEMINI S5 – W90||GEMINI S5 – W120|
|Production||90 m³/h||120 m³/h|
|Aggregate storage bins||5||5|
|Aggregates hopper capacity||200 m³||200 m³|
|Mixer type||Twin shaft||Twin shaft|
|Mixer capacity||3750 l||5000 l|
|Compacted concrete output per cycle||2,5 m³||3,35 m³|
|Aggregate weighing||10.000 Kg||10.000 Kg|
|Cement weighing||2.000 Kg||2.000 Kg|
|Water weighing||500 Kg||750 Kg|
|Additives weighing||2x25 Kg||2x45 Kg|
|Water pump||2.000 lt/min||2.000 lt/min|
|Screw conveyor diameter||323 mm||323 mm|
|Silos capacity||50÷100 tonn.||50÷100 tonn.|
|Automatic handling||Fully computerized||Fully computerized|
