CAPE

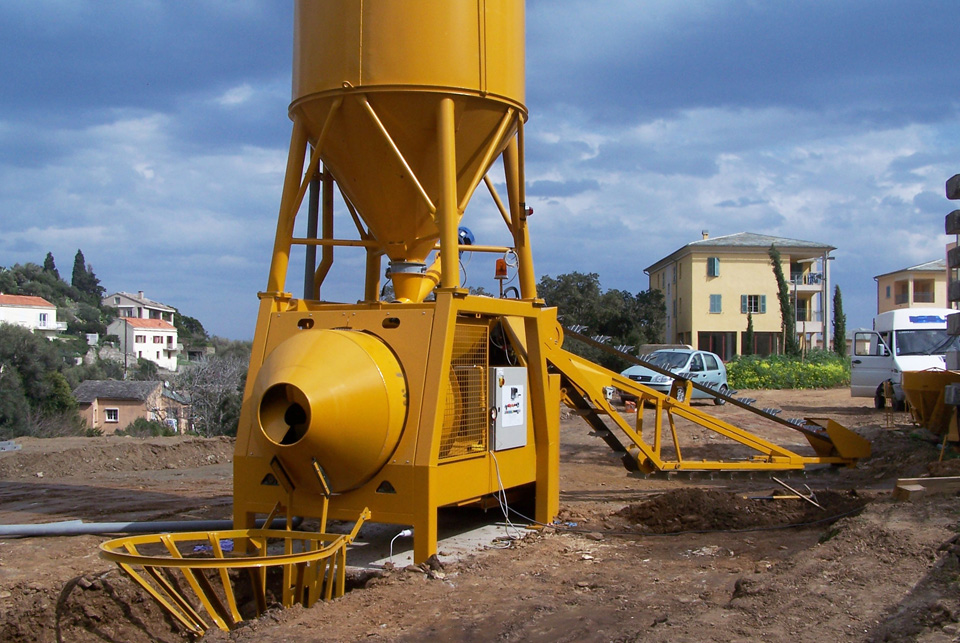

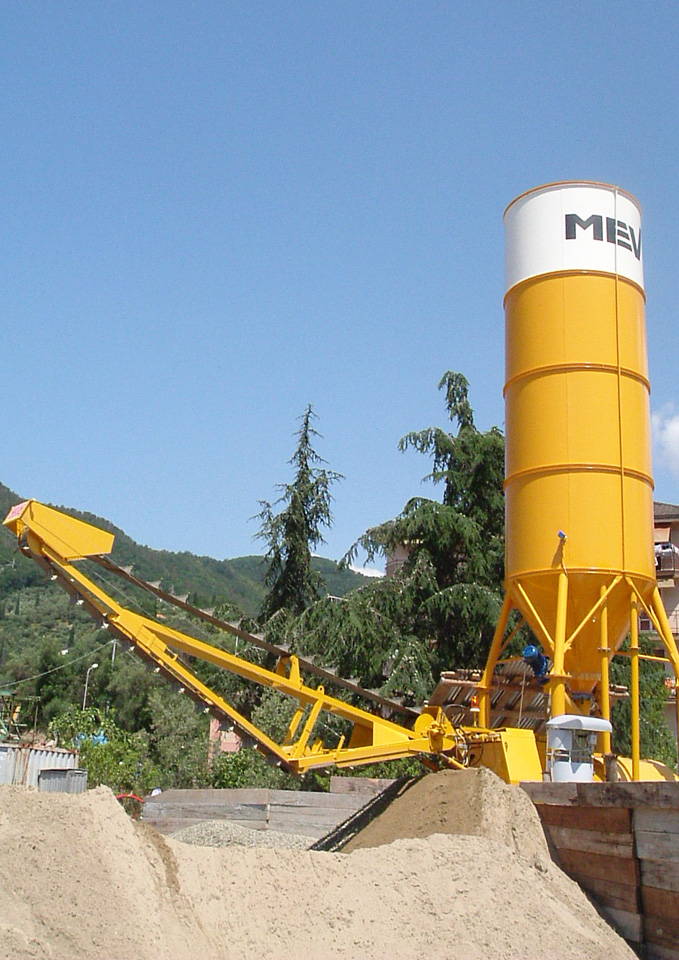

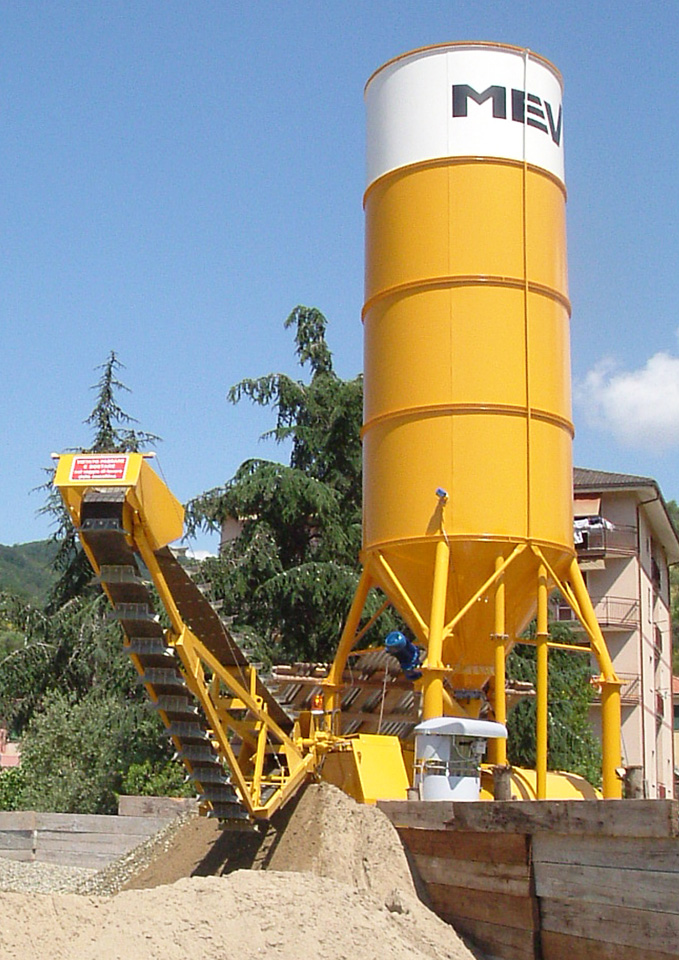

Self-loading concrete batching plant, fitted with radial scraper
Self-loading concrete batching plant, fitted with radial scraper; patented by MEV Srl.
This model differs from traditional plants thanks to its unique “floating” arm (it lifts up, it slews, then it lowers above the aggregates heap); this allows to convey up to 3 aggregates with lower noise levels and with more cleanliness, drainage (it collects the aggregate from the top of the heap) and precision.
Conveying arm with rubber belt and scraping blades. Perfect for loading buckets for cranes.
Provided with a horizontal axis reversing drum mixer, this plant can work fully automated, without the need for an operator.
Each MEV plant can be customized according to specific customer requirements.
Specifications | ||
---|---|---|
CAPE 1500-R | CAPE 750-R | |
Production 1 aggregate | 30/35 m³/h | 14/16 m³/h |
Production 2/3 aggregates | 22/30 m³/h | 12/14 m³/h |
Aggregate weigh hopper | 3000 Kg | 1500 Kg |
Cement hopper | 400 L | 250 L |
Outfeed conveyor | 580x3.200 mm | 450x2.300 mm |
Reversing drum mixer output | 1000 L | 500/600 L |
Cement screw conveyor diameter | 220 mm | 160 mm |
Silo | Positioned astride or sideways | Positioned astride or sideways |
Automatic handling | Automatic handling | Automatic handling |
